Description

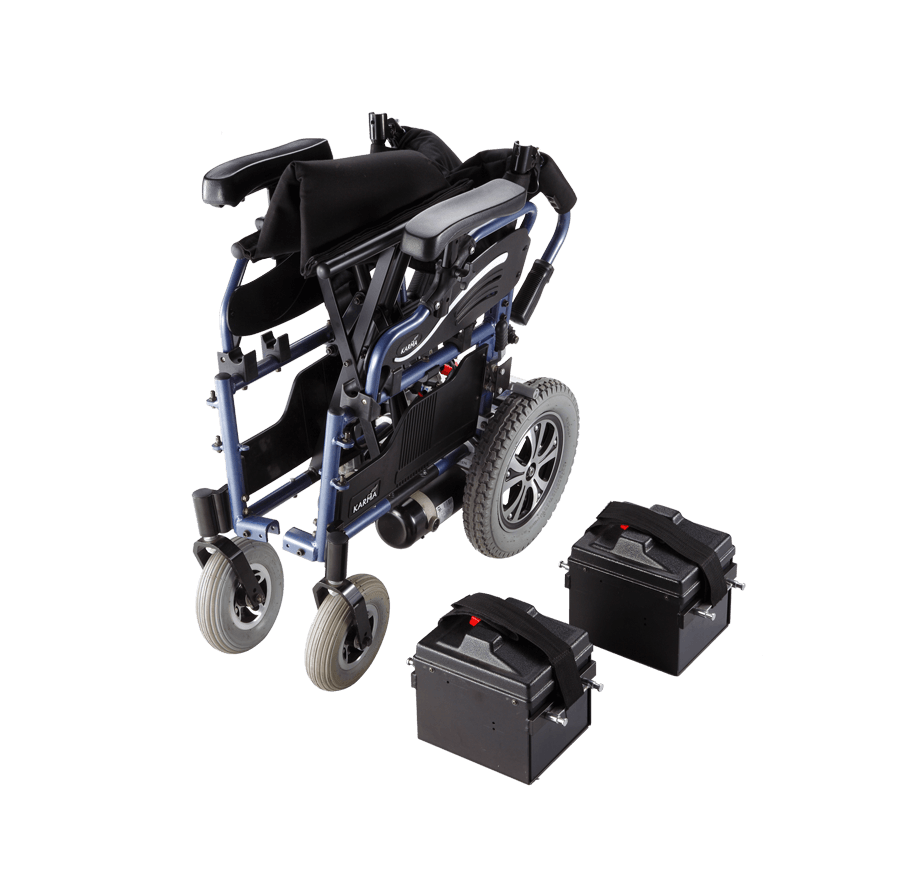

The KP-25.2 is suitable for medium- and short-distance travel. Lightweight and compact, it features a foldable frame and a removable compact battery pack. Perfect for daily use, the KP-25.2 is both convenient and portable.

The Karma KP-25.2 is a foldable electric wheelchair making transport convenient. It is intended to make the batteries simple to access and remove, making transportation even more convenient. Its polished shape, simple access to freewheel levels, and flip-back and height-adjustable armrests ensure a powered wheelchair that is fashionable, reliable, and simple to use anytime and anywhere.

Compact and maneuverable
One of the daily difficulties power wheelchair users encounter is maneuvring in and through tight spaces like doorways and elevators. Most standard power wheelchairs are 64 cm wide and given that some doorways are as narrow as 71 cm or smaller, it’s a tight squeeze getting through those doorways. The KP-25.2 is a compact medium-size wheelchair with an overall width of 59 cm, meaning it is easier to maneuver around tight corners and through narrow doorways.

Height Adjustable Armrests
According to the user’s body requirements, the armrest height can be adjusted to four different heights, allowing for a more comfortable fit.

Lateral Transfer
Lateral transfer is made easier with the flip-up armrests and the detachable swing-away footrests.

Crash Test Approved
The KP-25.2 is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transportation.



Specifications

  • Product Model KP-20 Series
    Nominal seat width
    (mm/in)*    		 410 / 16 460 / 18 515 / 20
    Nominal seat depth (mm/in)** 430 / 16 480 / 18 480 / 18
    Front caster / Drive wheel size (in) 8 / 12 8 / 12 8 / 12
    Backrest height (mm) 450 ~ 525 450 ~ 525 450 ~ 525
    Headrest height above seat (mm) N/A N/A N/A
    Armrest to seat distance (mm) 225 ~ 285 225 ~ 285 225 ~ 285
    Front location of armrest structure (mm) 245 ~ 500 245 ~ 500 245 ~ 500
    Seat surface height at front edge
    (mm)    		 525 525 525
    Footrest to seat distance (mm) 360 ~ 445 350 ~ 435 350 ~ 435
    Effective seat width (mm) 430 480 530
    Effective seat depth (mm) 470 515 515
    Seat plane angle (X°) 6 6 6
    Backrest angle (X°) 11 11 11
    Seat to backrest angle (X°) 95 95 95
    Leg to seat angle (X°) 110 110 110
    Overall length with legrest (mm) 985 ~ 1115 985 ~ 1115 985 ~ 1115
    Overall width (mm) 590 640 690
    Overall height (mm) 960 ~ 1035 960 ~ 1035 960 ~ 1035
    Folded length (mm) 755 755 755
    Folded width (mm) 380 395 395
    Folded height (mm) 910 910 910
    Total mass (kg) 67.0 67.6 67.6
    Total mass without batteries (kg) 35.7 36.3 36.3
    Mass of the heaviest part (kg) 30.0 30.6 30.6
    Maximum user weight (kg) 115 / 135 (pneumatic tires)
    Motor power (W) 200 200 200
    Battery capacity (Ah) 50*2 50*2 50*2
    Charger output current
    (A)    		 6 6 6
    Drive range (km) *** 32 32 32
    Battery Compartment (L x W x H)
    (mm)    		 220 x 170 x 175 (Single Compartment)
    Maximum speed forward (km) 6 6 6
    Minimum braking distance from
    max speed (mm)    		 1000 1000 1000
    Obstacle climbing (mm) 50 50 50
    Ground clearance (mm) 60 60 60
    Minimum turning radius (mm) 780 955 1130
    Minimum turning radius without
    user (mm)    		 650 825 1000
    Reversing width (mm) 1180 1220 1260
    Static stability downhill
    (X°)    		 16 16 16
    Static stability uphill
    (X°)    		 14 14 14
    Static stability sideways
    (X°)    		 16 16 16
    Dynamic stability uphill
    (X°)    		 6 6 6
    Ability to climb rated slope (X°) 12 12 12

    Electric ver.20



    Remark :
    * Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
    ** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
    *** Drive range/ Ability to climb rated slope are estimated based on the following conditions: 20℃~35℃, 115kg occupant, brand new fully charged batteries and driving on the flat road.
    – The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
    – The actual product specifications may vary according to different configurations.
    – KARMA reserves the right to modify information herein without further notice.

SKU 19-0225
Brand Karma
Shipping Weight 45.0000kg
Shipping Width 450.000m
Shipping Height 1100.000m
Shipping Length 850.000m
