Description

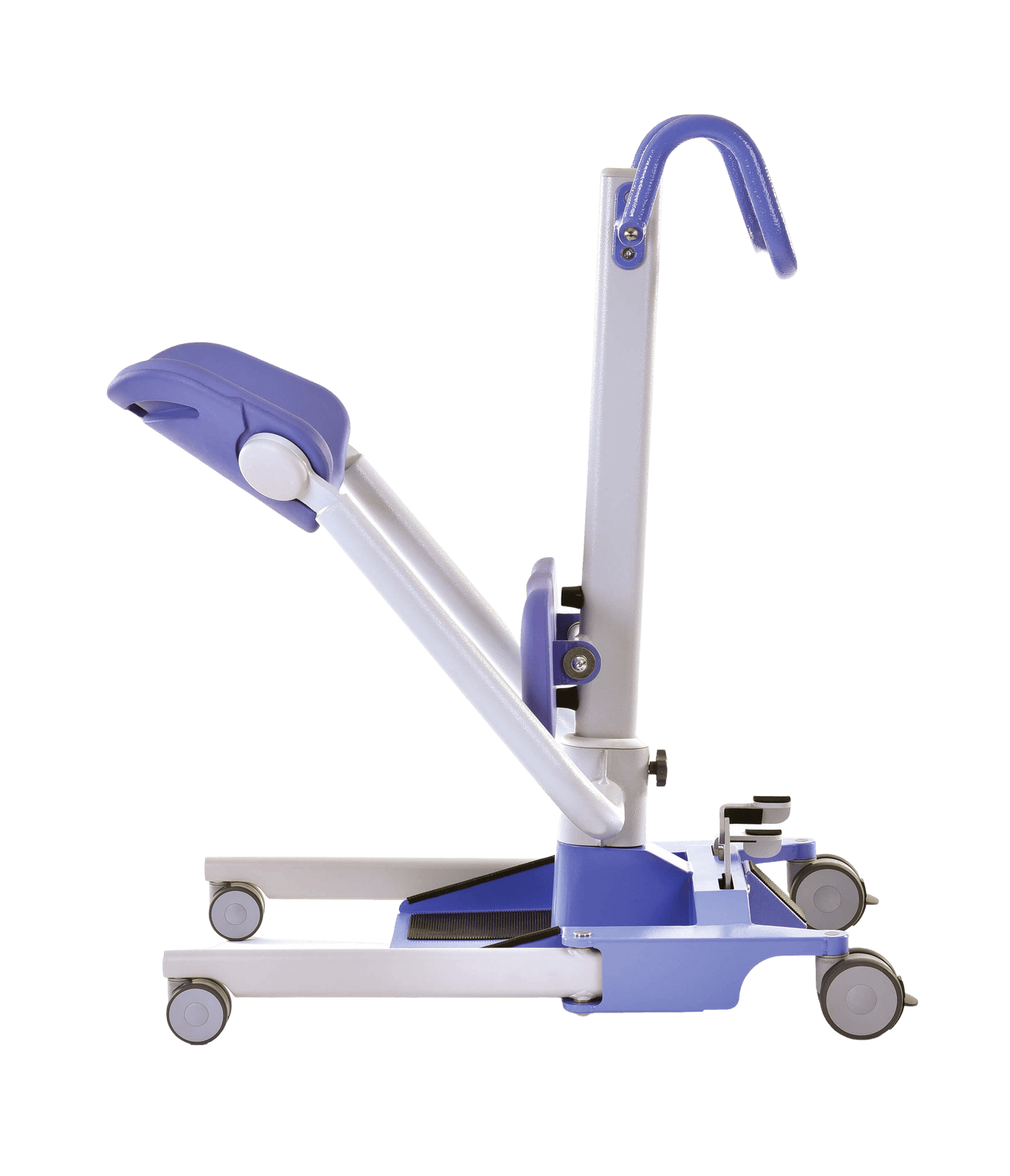

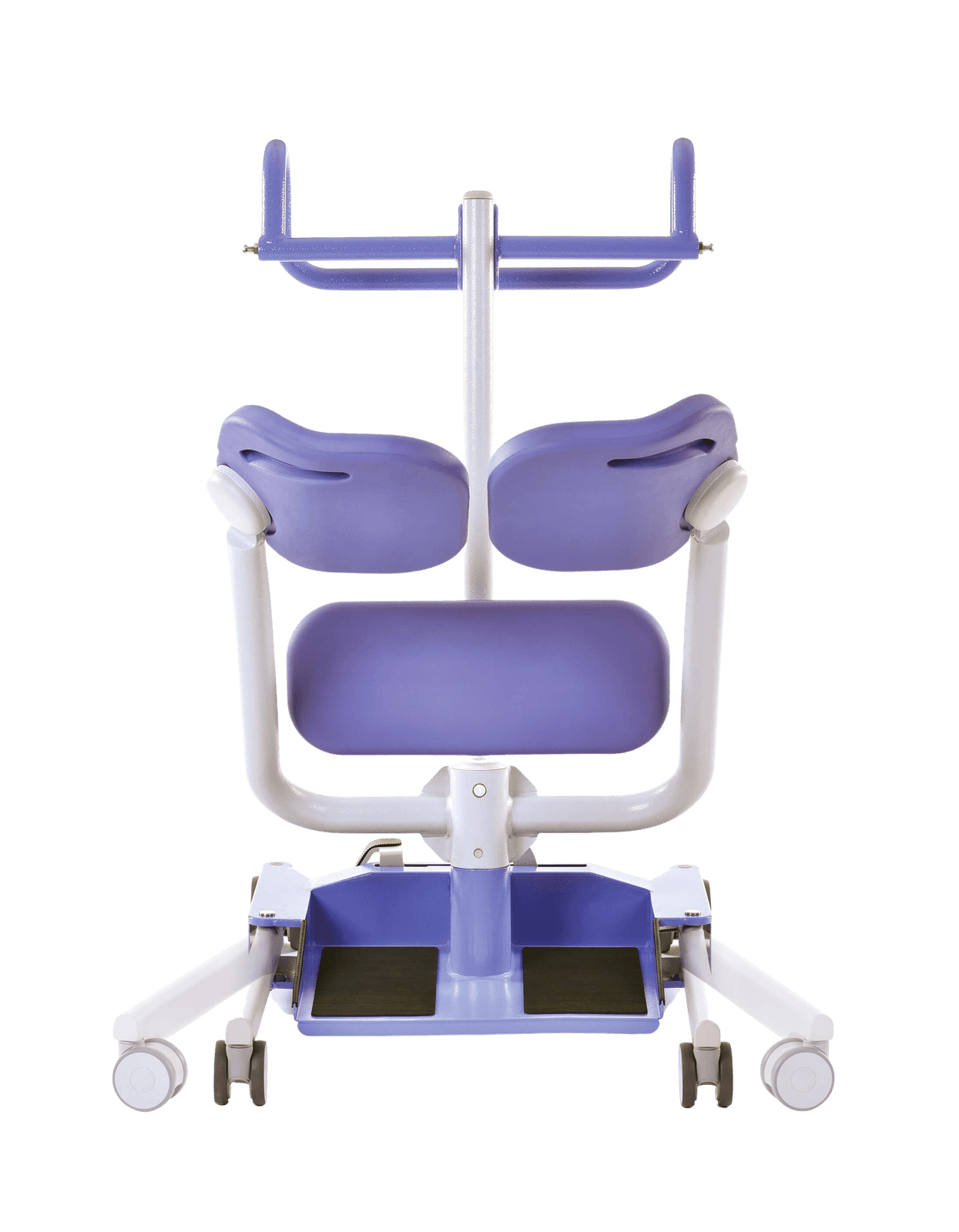

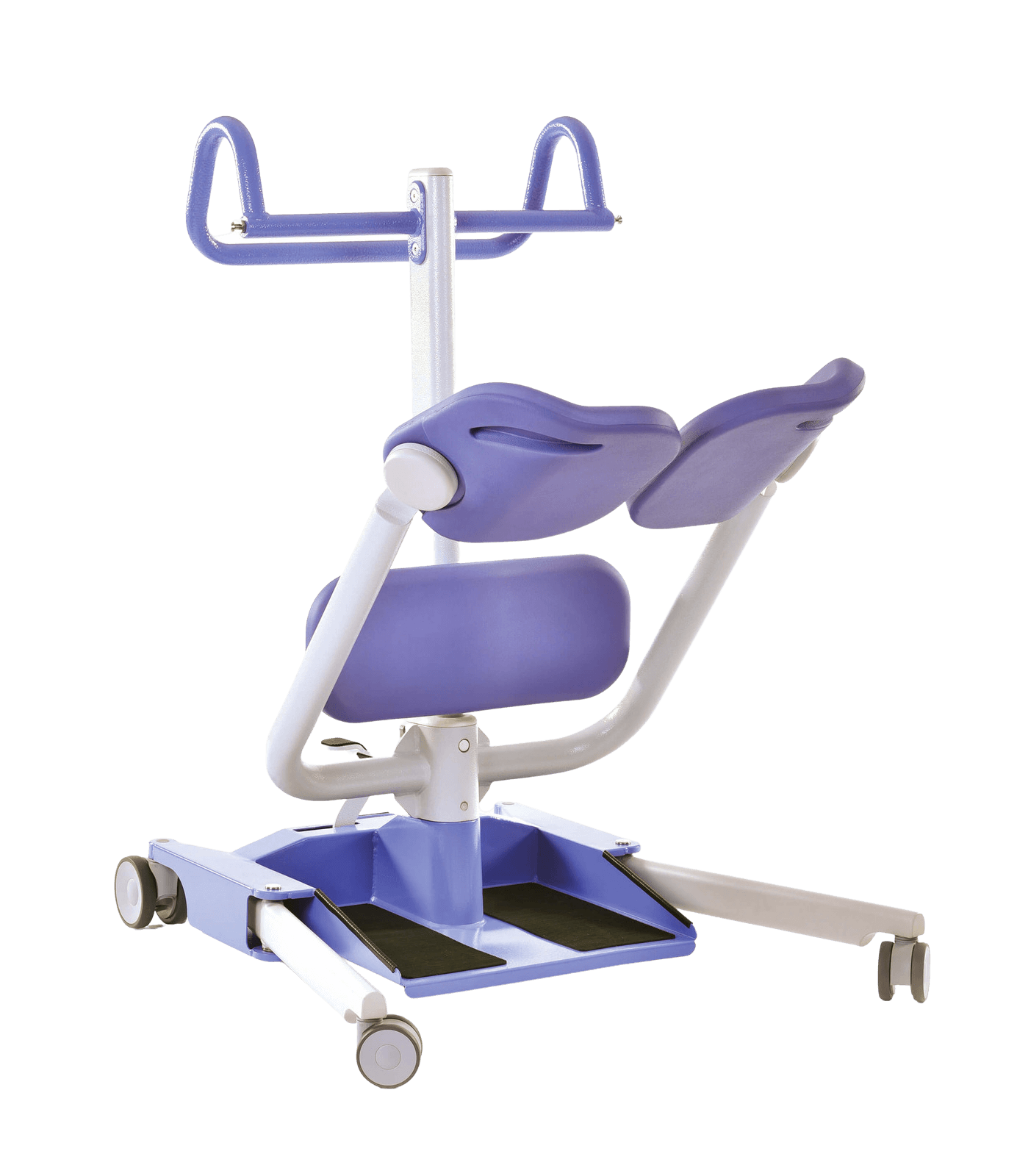

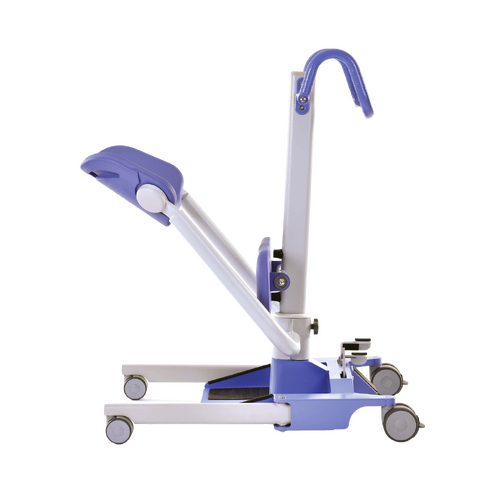

The new Oxford Up is a uniquely designed manual stand-aid and seated transfer device, suitable for those who require assistance when standing but are able to contribute effort to the process.

By encouraging user participation, the Up can play a supportive role in patient rehabilitation, function, and independence. This enables closer access to the patient and promotes better posture and positioning when standing from or returning to a chair or bed-side.

Padded and shaped for comfort, each seat pad pivots outwards to allow unobstructed access for the patient. The Up was designed with the five key principles of moving and handling in mind. This direct correlation ensures Oxford products are simple, safe and above all comfortable to use.

Key features

  • Safe working load 200kg / 31st / 440Ibs

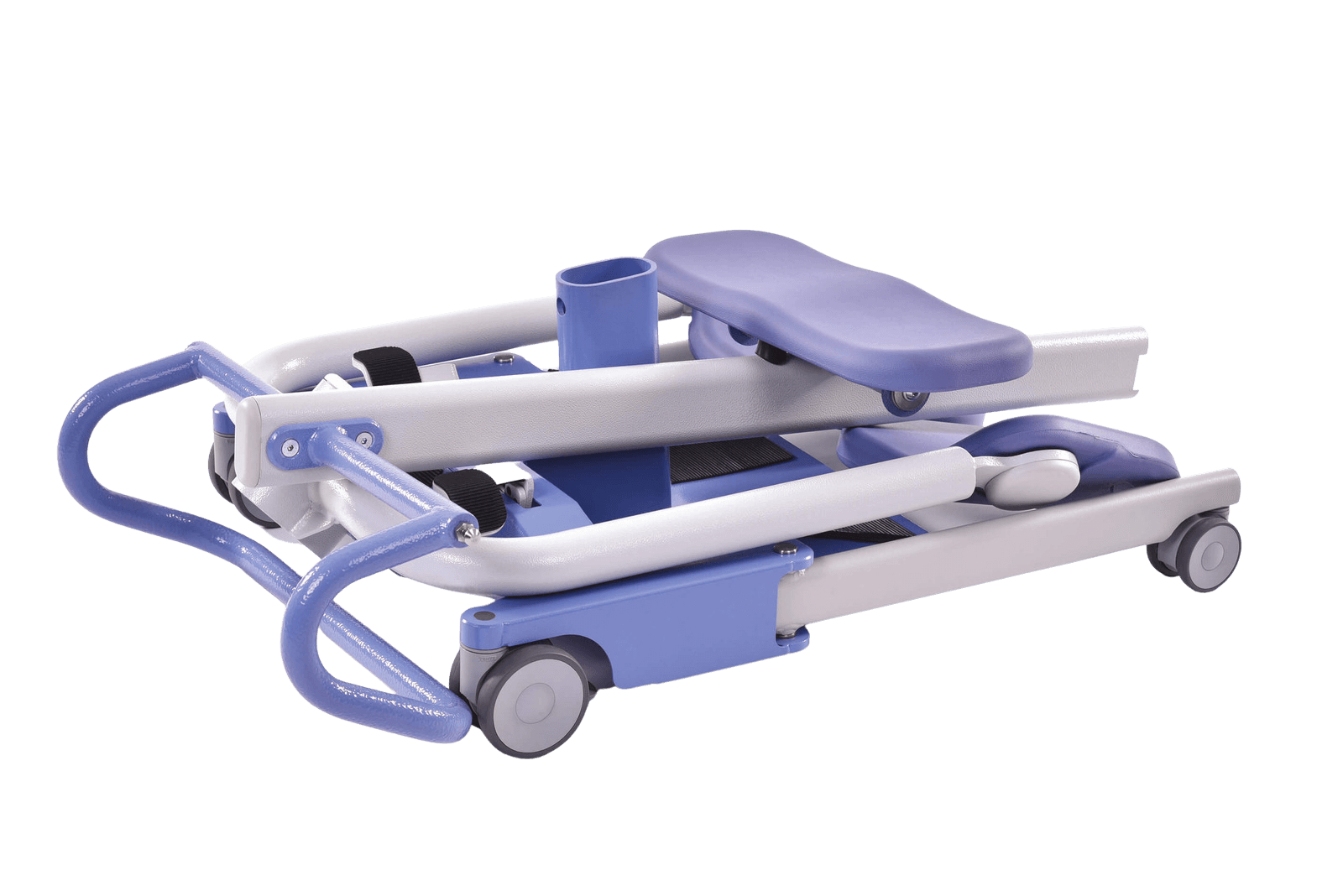

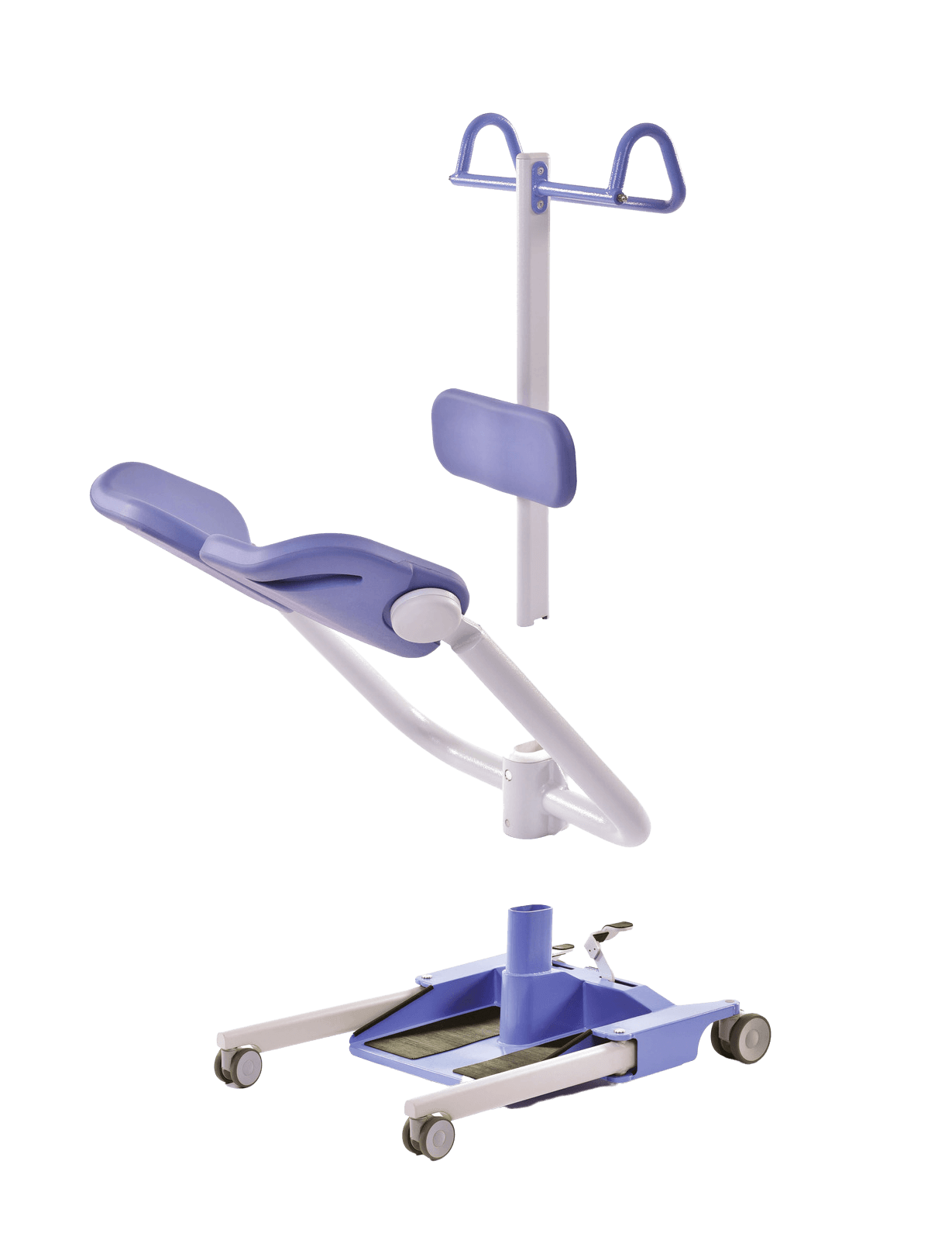

  • Disassembles for easy storage and transportation.

  • Adjustable legs for better access around furniture

  • Contoured swing-away seat pads

  • Ergonomic design considerations

  • Optional sling attachment available

Weights

  • Base 5kg

  • Seat Support Tubes Section 5kg

  • Mast 4kg

  • Total 33kgs

Specifications

Specification

  • Safe Working Load 200kgs

  • Overall Width 630mm

  • Overall Height 1100mm

  • Overall Length 950mm

  • Legs Open - External Width 845mm

  • Legs Open - Internal Width 725mm

  • Legs Closed - External Width 600mm

  • Legs Closed - Internal Width 480mm

  • Leg Height 110mm

  • Ground Clearance 26mm

  • Overall Height Of Base (Footplate 52mm

  • Knee Pad Height (From Footplate to top of Knee Pad) 483mm

  • Turning Radius 1040mm

  • Front Castors 75mm

  • Rear Castors 100mm

SKU 12133
